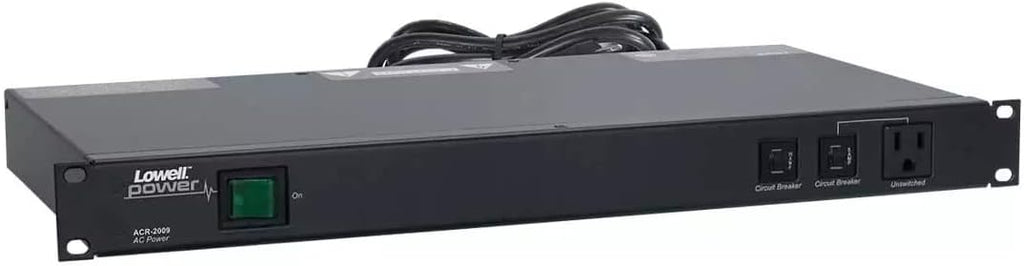

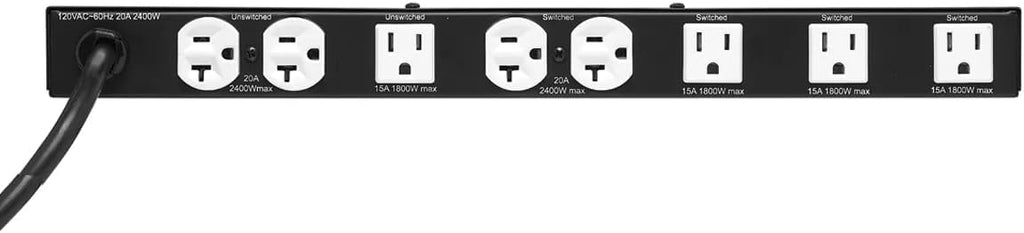

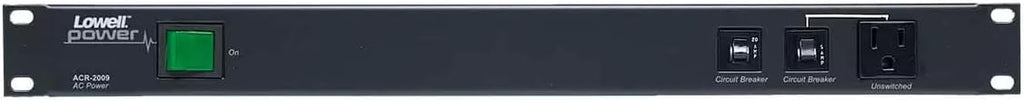

PDU model ACR-2009 with a total of nine receptacles (NEMA 5-15R/5-20R) includes eight rear receptacles, some controlled by the front rocker switch and a front convenience outlet that's always on. The 120VAC 60Hz 20A panel has a system circuit breaker and a separate circuit breaker to independently protect the front outlet, minimizing the possibility of system disruption when a non-system device is connected there. Includes attached 9-ft. cord with NEMA 5-20P plug

Key Features:
- Power Rating: 120VAC, 60Hz, 20A
- Outlets: 9 (15/20A) NEMA outlets (1 front, 8 rear)
- Termination: 9 ft. attached cord with NEMA 5-20P plug
- Chassis: 19 x 9 x 1.75 inches(1U)
- On/off Switch: Rocker switch controls 5 rear outlets (others are always on)

Specifications:
- Outlets: 9 (15/20A) NEMA outlets (1 front, 8 rear)
- Outlets Controlled by Switch: 5, rear
- Rocker Switch: Lighted rocker activation switch controls a total of 5 outlets, all in the rear
- Power Rating: 120VAC, 60Hz, 20A, 2400
- Circuit Breaker Protection: 20A system circuit breaker plus a separate 5A circuit breaker that independently protects the front outlet
- Power Cord: Attached 9-ft. cord with NEMA 5-20P plug
- Certification: UL Listed in US/Canada (UL60065)
- Chassis: 19 W x 9 D x 1.75 H inches(1U), 9 lbs
- Shipping Weight: 9 lbs

Features & Specs

  • Amperage : 20 Amps
  • Compatible Devices : Computer, Electronics, Appliances, Lighting Fixtures
  • Maximum Current : 20 Amps
  • Number of Outlets : 9
  • Number of Ports : 9
  • Other Special Features of the Product : On And Off Switch
  • Plug Type : Type B
  • Voltage : 120

Item details

  • ASIN : B009RTVHPC
  • Brand : Lowell
  • Manufacturer : Lowell
  • Mfr Part Number : ACR2009
  • Model Number : ACR-2009
  • UPC : 811859032612
  • Unit Count : 1.00 Count

Measurements

  • Item Dimensions L x W : 19'L x 9'W
  • Item Weight : 9 Pounds

Style

  • Color : Black
  • Shape : Rectangle

User guide

  • Recommended Uses For Product : Office, Workshop
