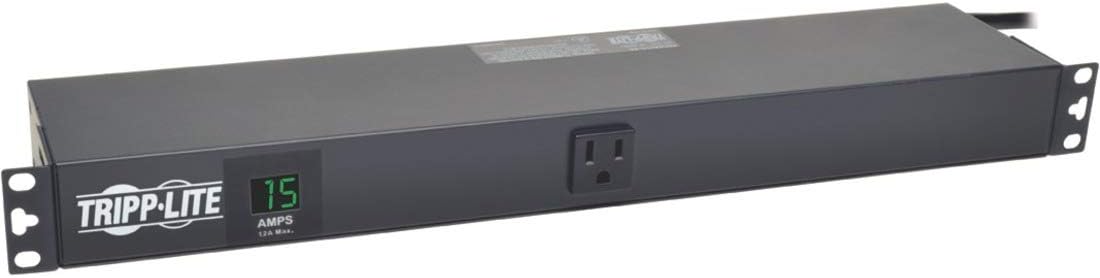

Tripp Lite Metered PDU, 15A, 13 Right-Angle Outlets (5-15R), 120V, 5-1

Tripp Lite Metered PDU, 15A, 13 Right-Angle Outlets (5-15R), 120V, 5-15P, 100-127V Input, 15 ft. Cord, 1U Rack-Mount Power (PDUMH15-RA) Black

$40.82 $112.99

Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rack mount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rack mount installation with included mounting accessories. Key Features 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous) Built-in 2 digit visual meter continuously reports PDU load level in amps Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord 1U horizontal rack mount format installs in one rack space 13 NEMA 5-15R outlets oriented with the ground pin on the bottom (1 front facing / 12 rear) Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats Optional PDUSIDEBRKT enables 0U vertical rack mount in compatible racks Back panel grounding lug 2-year limited warranty Typical Applications Multi-outlet power distribution unit with digital current monitoring is the ideal means of powering multiple loads in 19 inch rack mount, wall-mount, and under-counter applications such as internetworking, PC systems, telecommunications, audio visual, security, sound reinforcement, and more.

Additional details

Enclosure Material : Metal

Features & Specs

Amperage : 15 Amps
Compatible Devices : Any device with a NEMA 5-15P plug
Maximum Current : 15 Amps
Number of Outlets : 13
Number of Ports : 13
Other Special Features of the Product : Not_Performance_Used
Plug Type : Type B
Power Plug Type : Type B - 3 pin (North American)
Smart Energy Saving : No
Voltage : 120 Volts

Item details

ASIN : B00U315MS6
Brand : TRIPP LITE
Built-In Media : PDUMH15 Metered rackmount PDU; Owner's manual with warranty information
External Testing Certification : UL60950-1 (USA), CAN/CSA C22.2 No. 60950-1-03
Global Trade Identification Number : 00037332183231
Manufacturer : Tripp Lite
Mfr Part Number : PDUMH15-RA
Model Number : PDUMH15-RA
UPC : 037332183231
Unit Count : 13.0 Count
Warranty Description : 2 year limited warranty

Measurements
